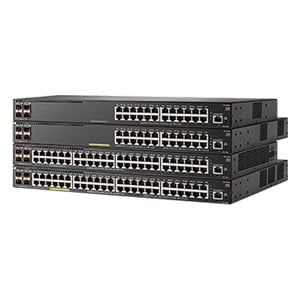

2540 Series

Reliable and secure access
Enhanced access security, ACLs, traffic prioritization, sFlow, and IPv6 host support.

Cloud management
Speed remote deployment with Aruba Central.

Single view of the network
Consistent wired and wireless experience with Aruba ClearPass Policy Manager and AirWave Network Management.

PHYSICAL INTERFACES

• 2540 24G 4SFP+ Switch (JL354A):
  • 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 4 SFP+ 1/10GbE ports; PHY-less
• 2540 48G 4SFP+ Switch (JL355A):
  • 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less
• 2540 24G PoE+ 4SFP+ Switch (JL356A):
  • 24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less
• 2540 48G PoE+ 4SFP+ Switch (JL357A):
  • 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less

ADDITIONAL PORTS AND SLOTS

1 dual-personality (RJ-45 or USB micro-B) serial console port

MEMORY AND PROCESSOR

• Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM
• Packet buffer size: 12.38 MB 4.5 MB Ingress/7.785 MB Egress, 4 GB eMMC

DIMENSIONS

• 2540 24G 4SFP+ Switch (JL354A):
  • (H) 4.39 cm x (W) 44.42 cm x (D) 20.02 cm (1.73” x 17.42” x 7.88”) (1U height)
  • Weight: 5.31 lb (2.41kg)
• 2540 48G 4SFP+ Switch (JL355A):
  • (H) 4.39 cm x (W) 44.42 cm x (D) 24.63 cm (1.73” x 17.42” x 9.7”) (1U height)
  • Weight: 6.83 lb (3.10kg)
• 2540 24G PoE+ 4SFP+ Switch (JL356A):
  • (H) 4.39 cm x (W) 44.42 cm x (D) 30.42 cm (1.73” x 17.42” x 11.98”) (1U height)
  • Weight: 8.6 lb (3.90kg)
• 2540 48G PoE+ 4SFP+ Switch (JL357A):
  • (H) 4.39 cm x (W) 44.42 cm x (D) 30.42 cm (1.73” x 17.42” x 11.98”) (1U height)
  • Weight: 9.83 lb (4.46kg)
•

PERFORMANCE

• 1000 Mb Latency: < 3.8 µs (64-byte packets)
• 10 Gbps Latency: < 1.6 µs (64-byte packets)
• Routing table size: 2,000 entries (IPv4), 1,000 entries (IPv6)
• MAC address table size: 16,384 entries
• 2540 24G 4SFP+ Switch (JL354A), 2540 24G PoE+ 4SFP+ Switch (JL356A):
  • Throughput: up to 95.2 Mpps
  • Switching capacity: 128 Gbps
• 2540 48G 4SFP+ Switch (JL355A), 2540 48G PoE+ 4SFP+ Switch (JL357A):
  • Throughput: up to 112.0 Mpps
  • Switching capacity: 176 Gbps

ENVIRONMENTAL

• Operating temperature range: 32°F to 113°F (0°C to 45°C); up to 5,000 Feet, -0°C to 40°C (32°F to 104°F) up to 10,000 Feet
• Operating relative humidity: 15% to 95% @ 104°F (40°C), noncondensing
• Storage temperature range: -40°C to 70°C (-40°F to 158°F)
• Nonoperating/Storage temperature: -40°F to 158°F (-40°C to 70°C); up to 15,000 Feet
• Nonoperating/Storage relative humidity :
  • 2540 24G 4SFP+ Switch (JL354A), 2540 48G 4SFP+ Switch (JL355A): 15% to 95% @ 149°F (65°C), noncondensing
  • 2540 24G PoE+ 4SFP+ Switch (JL356A), 2540 48G PoE+ 4SFP+ Switch (JL357A): 15% to 95% @ 149°F (65°C)
• Acoustic: See data sheet
• Airflow direction: Side-to-side

ELECTRICAL CHARACTERISTICS

• Frequency: 50/60 Hz
• 80plus.org Certification:
  • 2540 24G PoE+ 4SFP+ Switch (JL356A), 2540 48G PoE+ 4SFP+ Switch (JL357A): Silver
• Voltage: See data sheet
• Current: See data sheet
• Maximum heat dissipation: See data sheet
• Maximum power rating: See data sheet
• Idle power:
  • 2540 24G 4SFP+ Switch (JL354A), 2540 48G 4SFP+ Switch (JL355A): Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theo- retical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
  • 2540 24G PoE+ 4SFP+ Switch (JL356A), 2540 48G PoE+ 4SFP+ Switch (JL357A): 370 W PoE+
• PoE power:
  • 2540 24G PoE+ 4SFP+ Switch (JL356A), 2540 48G PoE+ 4SFP+ Switch (JL357A): Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theo- retical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.

SAFETY CERTIFICATIONS

• UL 60950-1, 2nd Edition
• EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013
• IEC 60950-1:2005 +A1:2009 +A2:2013
• CSA 22.2 No. 60950-1-07 2nd
• EN 60825-1:2007/IEC 60825-1:2007 Class 1

EMISSIONS

VCCI Class A; CNS 13438; ICES-003 Class A; FCC CFR 47 Part 15, Class A; EN 55022: 2010/CISPR-22, Class A

IMMUNITY

• Generic: EN 55024:2010/CISPR 24
• ESD: IEC 61000-4-2
• Radiated: IEC 61000-4-3
• EFT/Burst: IEC 61000-4-4
• Surge: IEC 61000-4-5
• Conducted: IEC 61000-4-6
• Power frequency magnetic field: IEC 61000-4-8
• Voltage dips and interruptions: IEC 61000-4-11
• Harmonics: EN 61000-3-2, IEC 61000-3-2
• Flicker: EN 61000-3-3, IEC 61000-3-3

MANAGEMENT AND MONITORING

• Aruba AirWave Network Management
• IMC – Intelligent Management Center
• Command line interface
• Graphical user interface (Web browser)
• Configuration menu
• SNMP manager
• Telnet
• RMON1
• FTP
• Out-of-band management (serial RS-232C or micro USB)
