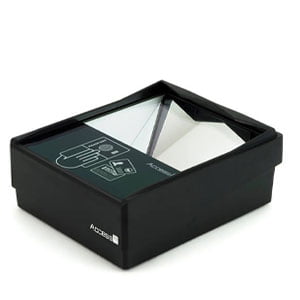

ATOM Document Reader
The ATOM Document Reader (ADR300) is a state-of-the-art, multi-illumination eMRTD reader. Designed from the outset to deliver high performance, ATOM blends an aesthetically pleasing design with maximum flexibility to make it the ideal choice for almost any application.
✓ Worldwide express shipping
✓ Unmatched customer support
Productivity and Cost Savings
Its innovative design enables the capture of multiple high resolution, uncompressed images (Visible, IR & UV). In comparison to existing scanners, the transaction time is significantly reduced delivering productivity and cost savings.
Ergonomics and Ease of Use
ATOM’s design sets it apart from other readers and allows for both desktop use and simple, elegant into countertop and kiosk integration. Its innovative ‘shark fin’ document guides ensure that even the most widely travelled documents quickly slide onto the glass, easing down bent corners for a perfect read.
Latest Standards
ATOM continues to deliver lightning fast MRZ decoding, whilst simultaneously reading RFID data from eDocuments, including those meeting the latest ICAO LDS standards. Additionally, high performance 1D/2D barcode reading ensures that the ATOM delivers a rich feature-set.
Expansion Dock for Added Features
The ATOM can be supplied with its innovative Expansion Dock to provide either contact smart card reading, magnetic stripe reading or both. The elegant ‘drop-in’ design means that the unit can be supplied already mated, or retrofitted in the field in just a few seconds.
ATOM set into an optional Expansion Dock
Applications
- Banking & Insurance
- Mobile Network Operators
- Hotels, Airports, & Car Rental
- Gaming & Casinos
- Alcohol and Tobacco Sales
- Tax Refunds & Money Exchange
- Border control & Law Enforcement
- Document & Visa Issuance
- Self-service applications & Kiosks
Device Features
Connection type
- USB
Technology
- NFC/RFID
- Barcode *
- OCR/MRZ
- Magnetic Strip *
- Contact SmartCard *
Reader size
- Full Page
Image Capture
- Visible
- Ultraviolet *
- Infrared
* Optional
Features
Saves Time & Cost
Ultra-fast operation delivers time and cost savings
Sophisticated Imaging
Captures high-resolution images in multiple wavelengths – visible, IR and UV
Flexible Barcode Reading
Reads 1D/2D barcodes from smartphones, tablets & paper
Simple Integration
Operates without external power supply using USB 3.0
Contactless Capability
ISO 14443 contactless RFID reader/writer supports ICAO LDS standards including BAC, PA, AA, EAC and SAC
MRZ Reading
Reads ICAO 9303 compliant documents, incl. e-Passports, ID cards & visas as well as ISO 18013 compliant driving licences
Optional Expansion Dock
Provides contact smart card & MSR reading, 2 additional USB ports and 2 SAM modules
