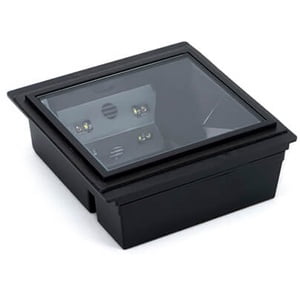

ATR220 – TripTick®
The state-of-the-art ATR220 – TripTick® reader series includes options for: barcode reading, NFC/RFID and barcode reading, and contactless EMV payments, NFC/RFID and barcode reading.
The ATR220 offers EMV Level 2 certification, allowing for applications where contactless payments are required. It offers PCI and SRED compliance for contactless payments using VISA, MasterCard, AMEX and Discover schemes. In addition, it also offers the reading of 1D/2D barcodes and RFID/NFC tickets and tokens from mobile phones, tablets, wearables, contactless cards and paper in any orientation.
✓ Worldwide express shipping
✓ Unmatched customer support
No-Nonsense Installation
TripTick offers operators the ultimate no-nonsense installation. Its small footprint, low profile, slot-in design enables easy integration into kiosks, ticket machines, turnstiles and access gates. Furthermore, its rugged water-resistant construction, with no moving parts, enables it to withstand years of indoor and outdoor public access use.
Power Over Ethernet
An option for Power over Ethernet (PoE) allows installation without a dedicated power supply. The device is also capable of RS422 connection at up to 1500m.
Proven Heritage
TripTick retains the key aspects of the size and shape of our proven LSR116 and LSR118 products, however its design delivers a significantly increased active scan area to further improve its barcode reading performance.
TripTick’s optimised imaging ensures read reliability and high-speed performance; capturing and decoding all popular linear, PDF417 and 2D symbologies.
Applications
Financial and other self-service kiosks
Ticket validation for public transport, car parking, stadia and events
Retail POS terminals
Casino and TITO gaming machines
Connection type
USB
Ethernet
RS232
RS485
Technology
cEMV
NFC/RFID
Barcode
Features
Contactless Payments
Works with all popular contactless cards & is cEMV – L2 Certification (VISA, AMEX, Discover, MasterCard) & PCI SRED – V5.0
Barcode Reading
Reads 2D, PDF417 and linear barcode symbologies
Low Profile
Only 36.9mm high with a single cable connection to host computer
IP67 Sealed
Front face sealed for integration into indoor/outdoor kiosks & gates
Reads Any Media
Optimised focal distance design improves read performance for all media
Designed for Frontline Use
LED user feedback for intuitive use and uprated UltraGlass® option for extreme environments
Connection Options
USB (HID, serial or keyboard), RS232, RS485, Ethernet interface options
Power over Ethernet
Option for Power over Ethernet (PoE)
