Avaya 9508 Digital IP Deskphone System

Looks Great, Sounds Better: The 9500 series features large, eye-friendly displays; paperless, all-digital labeling; and a high-quality integrated speakerphone that ensures everyone can hear and be heard.

Familiar, Functional Interface: There’s almost no learning curve with the 9500 Series. Almost any user will intuitively know to use the fixed keys to access the most common features and the flexible softkeys with contextual guidance and prompts.

A Sound Investment: The 9500 Series is an excellent value for your growing company – and it’s designed to remain that way, with expansion options including a headset interface. The 9500 Series delivers significant competitive advantages at its price point while lowering total cost of ownership for your company.

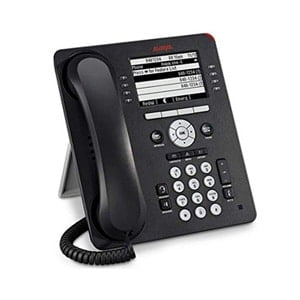

The Avaya 9508 Digital Deskphone: An Indispensable Phone for Executives and Managers

Small business executives who spend a great deal of time on the phone rely on advanced telephony features and depend on high quality, real-time voice communications, for the success of their roles. With a large, easy-to-read display, the 9508 provides multiple feature keys, speed dials, and call logs to please the most demanding executive.

The 9508 Digital Desk phone delivers what managers need:

• 8 administrative feature buttons on 3 levels (total of 24 button positions), plus optional 12-button expansion module for a total of 96 feature keys or speed dial buttons with dual red-green LEDs to display status
• 10 fixed-feature keys for common tasks (e.g. contacts, history and message)
• Integrated, two-way speakerphone
• Headset jack supports wide array of wired and wireless Avaya headsets
• Additional caller related information is
  displayed with active appearances for
  easier call handling
• Context-sensitive interface, 4-way nav
  cluster and 4 softkeys simplify and
  speed up operations
• 8 line X 32 character display, white
  backlit for easy viewing

Avaya 9508 Digital Deskphone Key Features

Connectivity

• Avaya IP Office Release 7.0 or later

Hardware Specs

• Charcoal gray
• Handset with 9-ft cord
• Dual-position stand
• Wall-mountable
• White backlit graphical display 181 x 121 dots; 8 rows x 32 characters
• Permanently-labeled buttons: Speaker, Headset, Mute, Volume, Avaya Menu, Phone, History, Contacts, Voicemail Message
• Permanently-labeled navigation cluster (Up/Down, Left/Right, OK)
• Message Waiting indicator
• 8 administrable buttons
• 4 contextual softkey buttons
• Button Module 12 (BM12) supported; up to 3 can be connected
• Headset support
• Two-way speakerphone
• 2 wired line interface

Size and Weight

• Length (depth) in low position: 8.07in (205mm)
• Width: 8.03in (204mm)
• Height off desk in low position/high position: 6.34in (161mm) / 7.91in (201mm)
• Weight including handset and stand: 2.2 lbs (992g)

Software

• Call control protocol: DCP
• Codec: G711
• Two-way speakerphone
• Secondary line alerting

Platform Support

Avaya IP Office

• Native support on IP Office Release 7.0
• Full access to IP Office call appearances and features
• Line appearance/feature key buttons: 8 x 3 levels
• Contacts application: 100
• Call Log application, with Missed/Answered/Outgoing calls,: 30
• User option for language selection
