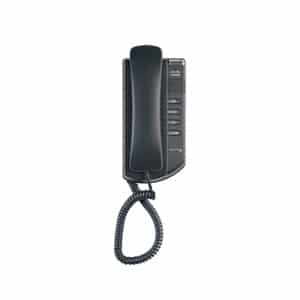

Cisco SPA 301 1-Line IP Telephone Systems

Highlights
● Basic 1-line business-class IP phone
● Connects directly to an Internet telephone service provider or to an IP private branch exchange (PBX)
● Easy installation and secure remote provisioning, as well as web-based configuration
● Supports both Session Initiation Protocol (SIP) and Smart Phone Control Protocol (SPCP) with the Cisco® Unified Communications 500 Series

Comprehensive Interoperability and SIP-Based Feature Set
Based on SIP, the Cisco SPA 301 1-Line IP Phone has been tested to help ensure comprehensive interoperability
with equipment from voice over IP (VoIP) infrastructure leaders, enabling service providers to quickly roll out
competitive, feature-rich services to their customers.
With hundreds of features and configurable service parameters, the Cisco SPA 301 addresses the requirements of
traditional business users while building on the advantages of IP telephony. Features such as easy station moves
and shared line appearance (across local and geographically dispersed locations) are just some of the many
advantages of the SPA 301.

Carrier-Grade Security, Provisioning, and Management
The Cisco SPA 301 uses standard encryption protocols to perform highly secure remote provisioning and
unobtrusive in-service software upgrades. Remote provisioning tools include detailed performance measurement
and troubleshooting features, enabling network providers to deliver high-quality support to their subscribers. Remote
provisioning also saves service providers the time and expense of managing, preloading, and reconfiguring
customer premises equipment.

Telephony Features
● One voice line
● Music on hold*
● Call waiting
● Outbound caller ID blocking**
● Call transfer: attended and blind** ( SIP Only )
● Three-way call conferencing with local mixing
● Multiparty conferencing via external conference bridge
● Automatic redial of last calling and last called numbers
● Call pickup: selective and group*
● Call swap
● Call back on busy**
● Call blocking: anonymous and selective**
● Call forwarding: unconditional, no answer, and on busy**
● Hot line and warm line automatic calling
● Digits dialed with number auto-completion
● Anonymous caller blocking**
● Support for Uniform Resource Identifier (URI) (IP) dialing (vanity numbers)
● Multiple ring tones with selectable ring tone per line
● Call duration and start time stored in call logs in web GUI
● Distinctive ringing based on calling and called number
● 10 user-downloadable ring tones
● Speed dialing, eight entries
● Configurable dial/numbering plan support
● Intercom*
● Group paging
● Network Address Translation (NAT) Traversal, including Serial Tunnel (STUN) support
● DNS SRV and multiple A records for proxy lookup and proxy redundancy
● Syslog, debug, report generation, and event logging
● Support for highly secure encrypted voice communications
● Built-in web server for administration and configuration, with multiple security levels
● Automated remote provisioning, multiple methods; up to 256 bit encryption (HTTP, HTTPS, Trivial File
Transfer Protocol [TFTP])
● Option to require administrator password to reset unit to factory defaults

Hardware Features
● Voicemail message waiting indicator light
● Voicemail message retrieval button
● Volume control
● Redial Button
● Flash Button
● Standard 12-button dialing pad
● High-quality handset
● One Ethernet WAN port 10/100BASE-T RJ-45
● 5 VDC universal (100–240V) switching power adaptor included
