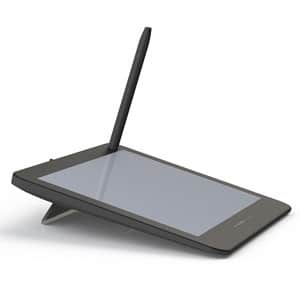

ENSign11

the top model with touch capabilities. the top model with touch capabilities. Directly connected with the computer, has been developed to offer an extremely compact device with great stability, high levels of safety and an elegant design.

Screen size and display
Sign directly on the pad
Highest levels of security
Protection of sensitive data
USB connection
Marketing interaction

✓ Competitive Pricing
✓ Worldwide express shipping
✓ Unmatched customer support

General Specifications

Dimensions: (W x D x H) 253 x 182 x 8 (h min, front) / 18 mm (h max, back)
Weight: ca. 650 gr
Power supply: USB bus powered
Communication interface: USB 2.0
Power consumption: 4W (operating mode), 0.25W (sleepmode)
Supported Operating Systems: Windows 10 / 8 / 7 / Vista / XP (ex. x64 version)

Touch Panel

Panel: Capacitative sensor Multi Touch (10 points)

LCD Screen

Display: Display: IPS TFT
Screen size: 10.1” (217 x 136 mm)
Aspect ratio: 16:10
Resolution: 1280×800
Colours: 16.7 Millions
Brightness: 200 cd/m2
Contrast Ratio: 800:1
Viewing angle: 170°/170°
Cover glass: Tempered Anti glare, etched surface

Signature Specifications

Technology: Electromagnetic resonance (EMR) Cordless, battery-free pen
Pressure levels: 2048
Resolution: 2540 lpi
Force applicable: 30-500 gr.
Movements flying detection: up to 10mm
Signature software compliance: ENsoft 1.1 and most of the third-party software platforms

Hardware and Software Security

Data communication: AES-256 bit encrypted communication between tablet and PC
Hardware security: USB cable not detachable from the device
Anti-theft: Slot for Kensington lock

Miscellaneous

Other software compliance: Compatible with the ENmarketing software which allows the remote management and display of
multimedia contents (images, video, web contents, etc..) and the customer interaction with the device (data input, instant
marketing 1to1, etc..)
Package content: Signature pad, integrated USB cable (3m), cordless battery-free pen, pen tether, quick start guide
