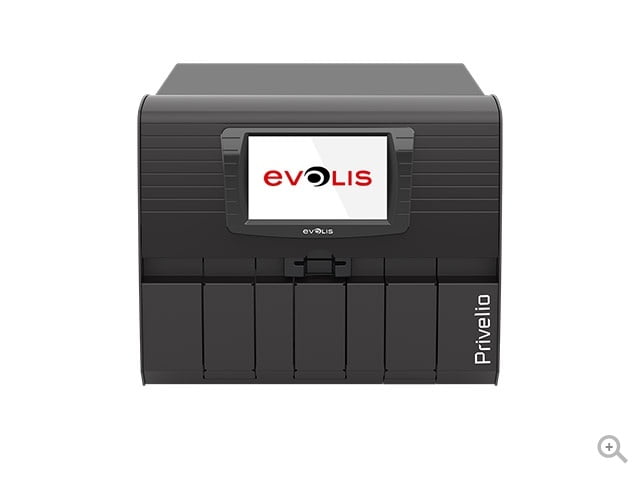

Evolis Privelio Best ID Card Printer

Instant issuance of personnalized payment cards

Privelio from Evolis is a system capable of instantly issuing credit and debit cards from pre-printed or blank cards.

Compliant with the international security guidelines for the instant issuance of payment cards in bank branches:

• The patented Kineclipse® process masks any residual sensitive card holder data left on the printing ribbon,
• Electromechanical locking system prevents access to the cards, ribbon, and internal parts of the machine
• The Evolis Mosaic SDK and the embedded PC card allow secure communication with existing information systems.

Evolis Privelio Quality and reliability

From complete printing of cards in color to monochrome personalization of pre-printed cards, Evolis solutions produce a high-resolution graphic finish in just a couple of seconds.

Privelio provides dedicated encoding features for full payment card personalization (magnetic stripe, EMV contact and contactless chips).

Reinforced security

Electromechanical locking system

Personalization ribbons, blank card stocks and rejected cards are all secure through the electromechanical locking system (with single or double access control) of Privelio.

Masking process of any residual sensitive card holder data left on the printing ribbon

Patented Kineclipse® innovation:

• masks the residual data left on the printing ribbon after the cards have been printed,
• Removes the need for destructing printing ribbons, no sensitive data can be compromised, event in case of theft attempt of the printing ribbons and facilitates their disposal.

Secure communication of banking data

The built-in PC card of Privelio systems makes the flow of card personalization data inaccessible to ill-intentioned individuals.

Flexibility and Scalability

Multiples designs

Privelio prints and encodes financial cards and allows many personalization possibilities of pre-printed or blank cards. Privelio offers in standard 3 100-card feeders, 1 bezel for single insertion and 2 printing modules into a unique system,

• The multiple card feeders allow you:
  • to facilitate the stock of your pre-printed or blank cards
  • to suit your customers’ needs
• The 2 printing modules allow you to personalize on-demand your cards in color or monochrome (black, green, red, blue, gold, silver)
• The bezel for manual single insertion allows you to satisfy specific demands and can offer to your customers having a personalized card design.

Remote control

The Evolis Mosaic server allows Privelio to be managed on a network without requiring the installation of a computer next to the system.

Optional embossing module available

Upgraded with the XT embossing module (as an option), Privelio can generate embossed characters and indenting on cards depending on the finish that you require.
Learn more about Privelio XT system.

On-demand configuration and smooth integration

Evolis Privelio system is fully customizable, simple to install and to operate. Financial institutions now have the solution that require less training for their staff.

Open integration system

Evolis printers have already been qualified and integrated by many independent instant issuance software providers. Compatible with all conventional smartcards, our solutions can interface easily with your systems thanks to the SDKs provided.

General Features

• Direct-to-card dye-sublimation/Resin thermal transfer
• Edge-to-edge, single or dual-sided printing
• Standard 300 x 300 dpi resolution
• Customizable 300 x 600 dpi resolution (color and monochrome printing) or 300 x 1200 dpi resolution (monochrome printing only)
• Embedded PC card

Printing Performances¹

• Single side:
  • Monochrome (black/gold/silver) + overlay: 33 sec/card
• Dual side:
  • Monochrome (black/gold/silver) + overlay / KO: 46 sec/card

Card Management and Specifications

• 3 x 100-card feeders (0.76 mm – 30 mil)
• Bezel for card to card printing
• Output hopper capacity: 40 cards (0.76 mm – 30 mil)
• Reject tray capacity: 40 cards (0.76 mm – 30 mil)
• Card thickness: 0.76 mm (30 mil)
• Card types: PVC cards
• Card format: ISO CR80 – ISO 7810 (53.98 mm x 85.60 mm)

Embossing / Indenting

• XT embossing and indenting module (optional):
  • Wheel capacity: 120 characters in stainless steel
  • Indenting unit: back side of cards – OCR B1
  • Standard type of characters: Farrington = OCR 7B (10 characters) and Standard Gothic (45 characters)
  • Other local character sets or specific languages for embossing and indenting available upon request

Interfaces

• Ethernet TCP-IP 10BaseT, 100BaseT (Traffic Led)

Additional Modules

• Available encoding modules:
  • Magnetic stripe encoder ISO 7811 HiCo/LoCo, JIS2
  • Smart contact station ISO 7816-2
  • Contact smart card encoder – PC/SC, EMV 2011-1
  • Contactless smart card encoder – ISO 14443A, B, ISO15693, MIFARE, DESFire, HID iCLASS
  • Other specific encoders upon request
• Options can be combined

Safety

• Electromechanical locking system with possible activation of dual access control
• Kineclipse® process for masking the residual data left on the printing ribbon after the cards have been printed
• Data encryption (SSL/TLS)
• Support for Kensington® security lock

Display

• Color touch screen display (7’’)

Software

• Evolis Mosaic SDK for remote supervision of the printer, while facilitating and speeding up integration and ensuring a secure communication

Customization Ribbons

• To maximize the quality and durability of printed cards, the lifespan of the print head and the overall printer reliability, use Evolis High Trust® ribbons:
• Automatic identification and setting
• Delivered in a drop-in cassette for easy handling
• Ribbon saver for monochrome printing

Eco-Friendly Design, Certifications and Statement of Compliance

• Standby mode & reduced energy consumption
• CE, FCC, ICES, VCCI
• RoHS

Size and Weight

• Size (H x W x D): 336 x 407 x 630 mm (13.23’’ x 16.02’’ x 24.80’’)
• Weight: 32.5 kg (71.65 lbs)

Warranty

• 3-year warranty (printer and print head)²
• Warranty extension available as an option

1 Under specific conditions / 2 Warranty subject to observance of specific conditions and use of Evolis High Trust® ribbons
