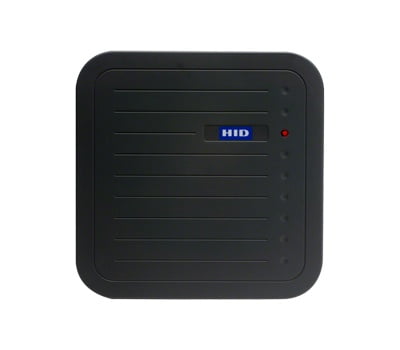

HID Proximity MaxiProx 5375
125 kHz long range proximity card reader
Base Part Number • 5375
- Auto-tune allows read range to be maintained within four inches of metal
- RS-232, RS-422, and RS-485 output modes are configurable
- “Parking hold” feature ensures accurate detection of vehicles in parking lanes
- Reads all HID Formats • Power requirements: 12 or 24 VDC (configurable) • Dimensions: 12.0˝ x 12.0˝ x 1.0˝ (30.5 cm x 30.5 cm x 2.54 cm) • Available in Wiegand or Clock-and-Data Interface • Read Range: up to 24.0˝ (61.0 cm)
✓ Competitive Pricing
✓ Worldwide express shipping
✓ Unmatched customer support
✓ Worldwide express shipping
✓ Unmatched customer support
Digifeat deals with HID Proximity MaxiProx 5375 in Dubai. HID’s MaxiProx® Reader is ideal for installations incorporating parking control and long read range applications. The MaxiProx reader packages all the electronics in one rugged, attractive and easy-to-install housing.
- Long read range distance (up to 6′ with ProxPass).
- Autotune allows read range to be maintained within four inches of metal.
- Wiegand, Clock-and-Data, RS-232 and RS-422 output modes are configurable.
- “Parking hold” feature ensures accurate detection of vehicles in parking lanes.
- Power requirements: 12 or 24 VDC (configurable) .
- Current requirements: 200mA avg / 700 mA peak at 12VDC; 260mA avg / 1.2A peak at 24 VDC.
- Dimensions: 12.0″ x 12.0″ x 1.0″ (30.5 x 30.5 x 2.54 cm).
Key Features:
- Long read range distance (up to 6′ with ProxPass).
- Autotune allows read range to be maintained within four inches of metal.
- Wiegand, Clock-and-Data and selectable serial outputs available.
- “Parking hold” feature allows connection to a loop detector to ensure accurate detection of vehicles in parking lanes.
- Compatible with all HID cards and tags with formats up to 85 bits.
- Multicolor LED with internal or host control of the LED and beeper.
- Two MaxiProx units can operate one meter apart for “HI-LO” (truck and car) installations.
- Reader supervision signal for CASI-RUSCO panels.
Contact Digifeat for Best offers on HID Proximity MaxiProx 5375 in UAE, Phone: +971 4 335 0962 | +971 50 103 6370 | Email : sales@digifeat.com
