SMART-31S
ㆍ Color & Mono Single Sided Printing
ㆍ Print Speed: Max. 23 sec./card (YMCKO)
ㆍ 300, 600 & 1200dpi with Edge-to-Edge Printing
ㆍ LED Buttons for Front Operation
ㆍ Low Cost Security with UV Printing
ㆍ Installable Encoders: MS, Contact & Contactless
ㆍ Upgradable Modules: Flipper & Ethernet
The part number for the Smart 31S Dual Sided Printer is 651562.
Printing
- Print Mode : Single Sided
- Print Type : Direct Dye-Sublimation
- Print Area : Edge to Edge
- Resolutions : 300dpi (Color & Mono), 600 & 1200dpi (Mono only)
- Dual Side Printing : Option (with Flipper)
Card
- Card Feeding : Automatic
- Card Size : ISO CR80
- Card Thickness : 0.38mm (15mil), 0.76mm (30mil)
- Card Type : PVC, PET, Composite PVC
Print Speed
- Monochrome : 5 sec./card (720 cards/hour)
- YMCKO : Max. 23 sec./card (156 cards/hour)
Capacity
- Input Hopper: Card : 80 Cards
- Output Hopper: Card: 25 Cards
System
- Memory : 64MB RAM
- Interface : 1 LED Button
- Supported Platforms : Microsoft Windows 7/ 8 /10, Mac OS, Linux
- Communication : USB, Ethernet (Option)
- Power Supply : DC 24V
- Power Consumption : 48W
- Temperature : 15~35℃
- Humidity : 35~70%
Dimensions
- Milimeter : 172 (W) x 377 (L) x 190 (H)
- Inch : 6.8 (W) x 14.8 (L) x 7.5 (H)
Weight
- Kg/Lbs : Approx. 3.4 kg/7.5 lbs
Encoding Option
- Magnetic : ISO 7811 (Track I, II, III Read/ Write, HiCo/ LoCo), JIS II
- Contact: ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
- Contactless : ISO 14443 (Type A/ B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica
Certifications
- Certifications : CB, CE, FCC, KC, CCC

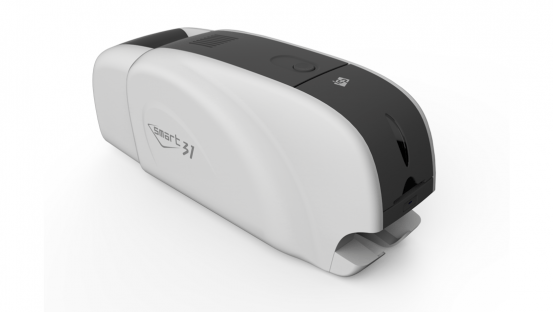

SMART-31D
ㆍ Single or Dual Sided Printing
ㆍ Print Speed: Max. 29 sec./card (YMCKOK)
ㆍ 300, 600 & 1200dpi with Edge-to-Edge Printing
ㆍ LED Buttons for Front Operation
ㆍ Low Cost Security with UV Printing
ㆍ Installable Encoders: MS, Contact & Contactless
ㆍ Upgradable Modules: Ethernet
The part number for the Smart 31D Dual Sided Printer is 651563.
Printing
- Print Mode : Dual Sided
- Print Type : Direct Dye-Sublimation
- Print Area : Edge to Edge
- Resolutions : 300dpi (Color & Mono), 600 & 1200dpi (Mono only)
Card
- Card Feeding : Automatic
- Card Size : ISO CR80
- Card Thickness : 0.38mm (15mil), 0.76mm (30mil)
- Card Type : PVC, PET, Composite PVC
Print Speed
- Monochrome : 5 sec./card (720 cards/hour)
- YMCKO : Max. 23 sec./card (156 cards/hour)
- YMCKOK : Max. 29 sec./card (124 cards/hour)
Capacity
- Input Hopper: Card : 80 Cards
- Output Hopper: Card : 25 Cards
System
- Memory : 64MB RAM
- Interface : 1 LED Button
- Supported Platforms : Microsoft Windows 7/ 8 /10, Mac OS, Linux
- Communication : USB, Ethernet (Option)
- Power Supply : DC24V
- Power Consumption : 48W
- Temperature : 15~35℃
- Humidity : 35~70%
Dimensions
- Milimeter : 172 (W) x 472 (L) x 190 (H)
- Inch : 6.8 (W) x 18.6 (L) x 7.5 (H)
Weight
- Kg/Lbs : Approx. 4.2 kg/9.5 lbs
Encoding Option
- Magnetic : ISO 7811 (Track I, II, III Read/ Write, HiCo/ LoCo), JIS II
- Contact : ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
- Contactless : ISO 14443 (Type A/ B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica
Certifications
- Certifications : CB, CE, FCC, KC, CCC

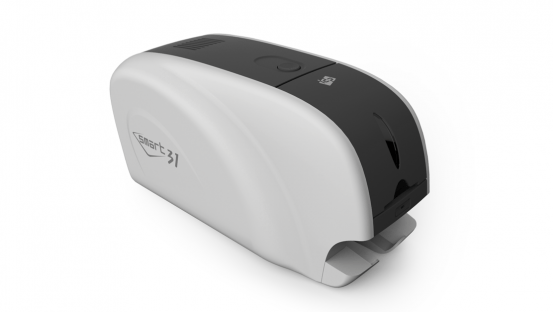

SMART-31R
ㆍ Direct Thermal Rewritable Method
ㆍ Rewritable Speed: Max. 12 sec./card
ㆍ LED Buttons for Front Operation
ㆍ Installable Encoders: MS, Contact & Contactless
ㆍ Upgradable Modules: Flipper & Ethernet
Printing
- Print Mode : Rewritable
- Print Type : Thermal Transfer
- Print Area : Edge to Edge
- Resolutions : 300dpi
Card
- Card Feeding : Automatic
- Card Size : ISO CR80
- Card Thickness : 0.38mm (15mil), 0.76mm (30mil)
- Card Type : Rewritable Thermochromic Material
Print Speed
- Monochrome : 12 sec./card (300 cards/hour)
Capacity
- Input Hopper: Card : 80 Cards
- Output Hopper: Card : 25 Cards
System
- Memory : 64MB RAM
- Interface : 1 LED Button
- Supported Platforms : Microsoft Windows 7/ 8 /10, Mac OS, Linux
- Communication : USB, Ethernet (Option)
- Power Supply : DC24V
- Power Consumption : 48W
- Temperature : 15~35℃
- Humidity : 35~70%
Dimensions
- Milimeter : 172 (W) x 377 (L) x 190 (H)
- Inch : 6.8 (W) x 14.8 (L) x 7.5 (H)
Weight
- Kg/Lbs : Approx. 3.4 kg/7.5 lbs
Encoding Option
- Magnetic : ISO 7811 (Track I, II, III Read/ Write, HiCo/ LoCo), JIS II
- Contact : ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
- Contactless : ISO 14443 (Type A/ B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica
Certifications
- Certifications : CB, CE, FCC, KC, CCC
