Printer
ㆍHigh Speed Printing
Max. 1,000 cards/h (Mono), Max. 225 cards/h (YMCKO)
ㆍ300dpi with Edge-to-Edge Printing
ㆍEnhanced Fine™ Imaging Technology
ㆍDrawer type ribbon cartridge
ㆍInstallable MS & Contactless Encoder
ㆍLCD & Button / Indicator LED
ㆍHigh Durability
ㆍPhysical Lock & Kensington Lock
ㆍEthernet
Printing
- Print Type : Direct Dye-Sublimation
- Print Area : Edge to Edge
- Resolutions : 300dpi
Card
- Card Feeding : Automatic
- Card Size : ISO CR80 (54mm x 86mm / 2.12” x 3.38”)
- Card Thickness : 0.38mm (15mil) ~ 1.2mm (47mil)
- Card Type : PVC, Composite PVC, PET
Print Speed
- Monochrome : 3.6 sec./card (1,000 cards/hour)
- YMCKO : Max. 16 sec./card (225 cards/hour)
Capacity
- Input Hopper: Card : *Optional Input Hopper : 500 Cards
- Output Hopper: Card : Stacker : 100 Cards / *Optional Output Hopper : 500 Cards
System
- Memory : 64MB RAM
- Interface : 2 Line LCD / 4 Buttons / 1 LED Indicator
- Supported Platforms : MS Windows 7/ 8 /10, Mac OS, Linux
- Communication : USB, 2 USB Host, Ethernet
- Power Supply : Free voltage (AC 100/ 220V, 50~60Hz)
- Power Consumption : 24V, 2A
- Temperature : 15~35℃
- Humidity : 35~70%
Security
- Physical Lock : Ribbon
- S/W : PC authentication, Password authentication
- Station Itself : Kensington Lock
Dimensions
- Milimeter : 240 (W) x 214 (L) x 305 (H)
- Inch : 9.5 (W) x 8.4 (L) x 12 (H)
Weight
- Kg/Lbs : Approx. 6.3 kg/13.9 lbs
Encoding Option
- Magnetic : ISO 7811 (Track I, II, III Read/ Write, HiCo/ LoCo), JIS II
- Contactless : ISO 14443 (Type A/ B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica

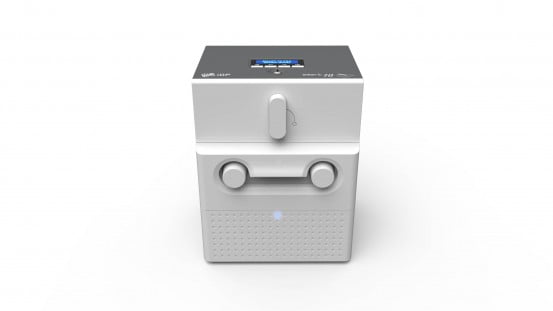

Laminator
ㆍNo warming-up time
Instant direct heating mechanism *Patent
ㆍDrawer type film cartridge
ㆍLCD & Button / Indicator LED
ㆍHigh Durability
ㆍPhysical Lock & Kensington Lock
Laminating
- Type : Direct Heating Lamination
- Speed : 19 sec./card (Single-sided Laminating)
Laminating Film
- Type : Clear, Holographic
- Thickness : 0.6mil ~ 1.0mil
- Capacity : 500 Cards/Roll
System
- Interface : 2 Line LCD / 4 Buttons / 1 LED Indicator
- Communication : USB, RS-232C
- Power Supply : Free voltage (AC 100/ 220V, 50~60Hz)
- Power Consumption : 24V, 2.3A
- Temperature : 15~35℃
- Humidity : 35~70%
Security
- Physical Lock : Laminating Film
- Station Itself : Kensington Lock
Dimensions
- Milimeter : 240 (W) x 214 (L) x 305 (H)
- Inch : 9.5 (W) x 8.4 (L) x 12 (H)
Weight
- Kg/Lbs : Approx. 6.1 kg/13.4 lbs

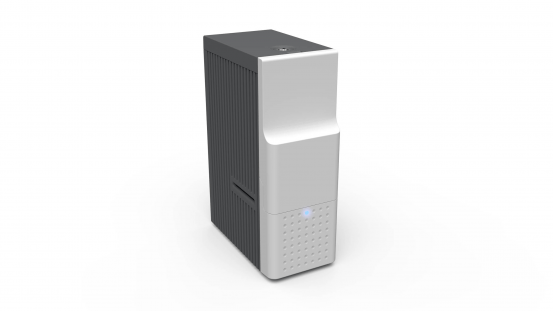

Hybrid Flipper
ㆍCard Flipper
ㆍInstallable Encoding modules
Contact & Contactless Smartcard Encoder
ㆍImage Scanning & Barcode Recognition
Dual Sided Image Scanning (600dpi / 300dpi)
1D & 2D Barcode Recognition (Front / Back)
ㆍHigh Durability, Indicator LED
ㆍError Card Bin* (Max. 30 cards)
ㆍPhysical Lock & Kensington Lock
Encoding Options
- Contact : ISO 7816 A/B/C Card, ISO 7816 1/2/3/4 Microprocessor Card
- Contactless : ISO 14443 (Type A/ B), MIFARE, DESFIRE, iCLASS, ISO 18092(NFC), Felica
Scanner Option
- Image Scanner : Selectable 300 & 600 dpi Dual-sided image scanning resolution
- Scanning Speed : 4.5sec/card (300 dpi), 6sec/card (600 dpi)
- Barcode Recognition : 1D & 2D Barcode Recognition (Front/Back)
System
- Communication : USB
- Power Supply : Free Voltage (AC 100/ 220V, 50~60Hz)
- Power Consumption : 24V, 2A
- Temperature : 15~35℃
- Humidity : 35~70%
Security
- Physical Lock : Encoder or Error Card
- Station Itself : Kensington Lock
Dimensions
- Milimeter : 110 (W) x 204 (L) x 305 (H)
- Inch : 4.3 (W) x 8.0 (L) x 12 (H)
Weight
- Kg/Lbs : Approx. 2.8 kg/6.2 lbs. (Without Optional modules)
Error Card Bin
- Error Card Bin : Ejection device for faulty card is equipped inside Flipper (Max. 30 cards) * If encoder or scanner options are not selected, Error Card Bin will be provided.
Input Hopper
ㆍLarge Capacity
Max. 500 cards
ㆍScratch Free
ㆍHook for Card-In
ㆍResidual Q’ty Sensor
Near empty & empty alert notifications
ㆍHigh Durability, Indicator LED
ㆍPhysical Lock & Kensington Lock
Capacity
- Input Hopper: Card 500 or 300 cards Cartridge Selectable
- Feeding : Automatic
Card
- Size : ISO CR80 (54mm x 86mm / 2.12” x 3.38”)
- Thickness : 0.38mm (15mil) ~ 1.2mm (47mil)
- Type : PVC, Composite PVC, PET
Sensor
- Residual Q’ty Sensor : Near Empty & Empty
- Detection Sensor : Cartridge Mount Status Detectable
System
- Communication : USB, RS-232C
- Power Supply : Free Voltage (AC 100/ 220V, 50~60Hz)
- Power Consumption : 24V, 2A
- Temperature : 15~35℃
- Humidity : 35~70%
Security
- Physical Lock : Cartridge
- Station Itself : Kensington Lock
Dimensions
- Milimeter : 170 (W) x 204 (L) x 548 (H)
- Inch : 6.7 (W) x 8.0 (L) x 21.6 (H)
Weight
- Kg/Lbs : Approx. 3.7 kg /8.2 lbs

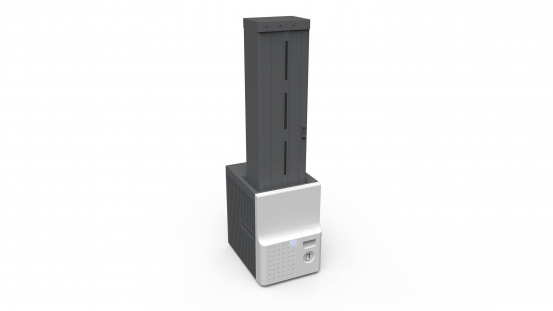

Output Hopper
ㆍLarge Capacity
Max. 500 cards
ㆍScratch Free
ㆍResidual Q’ty Sensor
Full Space alert notification
ㆍHigh Durability, Indicator LED
ㆍPhysical Lock & Kensington Lock
Capacity
Card
Size : ISO CR80 (54mm x 86mm / 2.12” x 3.38”)
Thickness : 0.38mm (15mil), 1.2mm (47mil)
Type : PVC, Composite PVC, PET
Sensor
System
Communication : USB, RS-232C
Power Supply : Free Voltage (AC 100/ 220V, 50~60Hz)
Power Consumption : 24V, 2A
Temperature : 15~35℃
Humidity : 35~70%
Security
Dimensions
Weight
