Suprema XPass D2 Time Attendance System
Digifeat deals with Suprema XPass D2 Time Attendance System in Dubai. XPass D2 is an outdoor compact RFID reader based on Suprema’s state-of-the-art RFID technology and multi-hardware platform, optimized for centralized access control systems such as Suprema’s CoreStation.
✓ Worldwide express shipping
✓ Unmatched customer support
Using multi-form factor technology, mullion-type, gangbox-type and gangbox keypad-type are all supported. With dual-frequency (125kHz / 13.56MHz) RFID technology, XPass D2 also supports mobile cards using NFC and BLE, the latest mobile communication technologies. Packed in a rugged IP67 rated dust & waterproof performance as well as IK08 rated vandal-proof structure, suitable for tough environments and outdoor installations.
Dual Frequency, Multi-Smartcard Reader
Featuring dual-frequency RFID card technology, XPass D2 supports both LF(125kHz) and HF(13.56MHz) RFID including all RFID card standards. On top of fingerprint credential, XPass D2 supports most types of RFID card standards with a single device including 125 Khz EM, Wiegand format card, 13.56 MHz MIFARE, MIFARE Plus, DESFire EV1/EV2, FeliCa, NFC, and BLE.
Communicates with Smartphones
With Suprema Mobile Access, as a credential, your smartphone is a key to access.
BLE (Bluetooth Low Energy)
Communicates via BLE in Android
Protecting data communications using the AES encryption algorithm
NFC (Near Field Communication)
Communicates via NFC’s HCE in Android
* Note that HCE is not available on all Android smartphones. It is recommended to check the smartphone specification, but this feature is widely supported on the latest models.
Protecting data communications using the AES encryption algorithm
BLE (Bluetooth Low Energy)
Communicates via BLE in iOS
Protecting data communications using the AES encryption algorithm
Standardized Communications
Open Supervised Device Protocol (OSDP)
Combined with Suprema’s intelligent biometric controller, the CoreStation, XPass D2 completes biometrics-driven access control system with enhanced simplicity and level of security of centralized system topology.

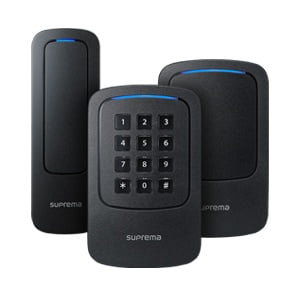

Mullion-type Design
With its 48mm width, XPass D2 perfectly fits in narrow spaces and door frames.
Gangbox-type Design
XPass D2 offers complete installation in Gangbox locations. You can choose either Gangbox-type or Gangbox Keypad-type depending on your needs.
IP67, Dust & Water Proof
XPass D2 offers superior ingress protection with its IP67 rated rugged structure. The device provides superior protection against invasive moisture, dust and even liquids. This protection is achieved with meticulous sealing and extra protective engineering from Suprema. No matter how harsh the environment, XPass D2 is the ideal choice for outdoor applications.
IK08 Vandal-proof Structure
The XPass D2 comes with a robust, vandal-resistant housing. Combining reinforced resin with Suprema’s sophisticated engineering, the XPass D2 is able to withstand a high level of impact, making it vandal-resistant. Coupled with IK08 ingress protection, XPass D2 is a perfect solution for outdoor applications.
