ACR7x Series

Intuitive Use

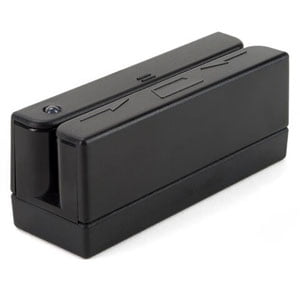

The ACR75 and ACR76 magnetic strip card readers are manual swipe readers of high and low coercivity magnetic cards. Intuitive to use, the ACR7x magnetic strip readers (MSRs) read in either swipe direction.

USB Connection
The ACR75 communicates as a USB keyboard device and does not usually require a device driver to be installed. Configuration settings can be programmed and downloaded using the Access-IS SoftProg utility and stored within the reader. Header and terminators, data track selection, options to configure transmission of Start and Stop Sentinels and LRC data elements can be set.

Simple and Flexible Configuration
The ACR76 installs with a Windows device driver. The driver interface allows users to choose data format as keyboard or serial data. In addition, parsing options can be configured to allow specific fields of data to be tested and conditional output formatting or data extraction rules to be set. The rules are stored as a registry key allowing an easy method for upgrade and for distribution on a large scale.

Applications

• Point of sale credit and debit card transactions
• Access control and time management
• Loyalty schemes
• Club or library membership management
• Computer security

Device Features

Connection type

• USB

Technology

• Magnetic Strip

Reader size

• Swipe

Features
Simple Connection
Convenient USB interface

User feedback
Green and red indicator lights

Space Saving
Compact design with a small footprint

Intuitive Use
Bidirectional reading

Flexible Mounting
Optional brackets allow mounting at almost any angle
