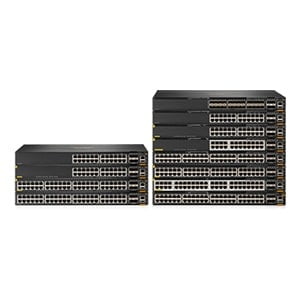

Aruba CX 6300 Switch Series

Simplify your IT operations
AOS-CX delivers distributed analytics and full programmability from access to data center to automate and simply IT operations for complete network configuration and assurance.

See and fix problems before they happen
Aruba Network Analytics Engine (NAE) for unparalleled visibility and analytics via built-in, real-time monitoring and troubleshooting for fast problem identification and resolution.

Amazing performance for your users and IoT
Switching Framework (VSF) for 10-member stacking, built-in wire speed 10/25/50GbE uplinks, high density SFP+, and choice of HPE Smart Rate multi-gig with 60W PoE on every port.

PERFORMANCE

• System Switching Capacity: 880 Gbps
• System Throughput Capacity: 660 Mpps
• Stack Size: 10 member
• Max. Stacking Distance: Up to 10 kms with long range transceivers
• Stacking Bandwidth: 200 Gbps

MODELS

• Aruba 6300M 24-port SFP+ and 4-port SFP56 Switch (JL658A)
  • 24x 1G/10G SFP+ ports
  • 4x 1/10/25/50G SFP ports
  • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
  • Two field-replaceable, hot-swappable fan trays (included)
  • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
  • Weight: 5.8 Kg (12.78 lbs)
• Aruba 6300M 48-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch (JL659A)
  • 48x ports Smart Rate 100M/1G/2.5G/5GBaseT Class 6 PoE ports supporting up to 60W per port
  • 4x 1/10/25/50G SFP ports
  • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
  • Delivers up to 2880W of Class 6 PoE Power
  • Two field-replaceable, hot-swappable fan trays (included)
  • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
  • Weight: 6.71 kg (14.8 lbs)
• Aruba 6300M 24-port HPE Smart Rate 1/2.5/5GbE Class 6 PoE and 4-port SFP56 Switch (JL660A)
  • 24x ports Smart Rate 100M/1G/2.5G/5GBaseT Class 6 PoE ports supporting up to 60W per port
  • 4x 1/10/25/50G SFP ports
  • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
  • Delivers up to 1440W of Class 6 PoE Power
  • Two field-replaceable, hot-swappable fan trays (included)
  • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
  • Weight: 6.06 (13.36 lbs)
• Aruba 6300M 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL661A)
  • 48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
  • 4x 1/10/25/50G SFP ports
  • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
  • 48 ports of full redundancy PoE+ Power with two 1600W PSUs
  • Two field-replaceable, hot-swappable fan trays (included)
  • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
  • Weight: 5.72 kg (12.61 lbs)
• Aruba 6300M 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL662A)
  • 24x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
  • 4x 1/10/25/50G SFP ports
  • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
  • 24 ports of full redundancy PoE+ Power with two 1600W PSUs
  • Two field-replaceable, hot-swappable fan trays (included)
  • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
  • Weight: 5.55 kg (12.23 lbs)
• Aruba 6300M 48-port 1GbE and 4-port SFP56 Switch (JL663A)
  • 48x ports 10/100/1000BaseT ports
  • 4x 1/10/25/50G SFP ports
  • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
  • Two field-replaceable, hot-swappable fan trays (included)
  • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
  • Weight: 5.51 kg (12.14 lbs)
• Aruba 6300M 24-port 1GbE and 4-port SFP56 Switch (JL664A)
  • 24x ports 10/100/1000BaseT ports
  • 4x 1/10/25/50G SFP ports
  • 2 field-replaceable, hot-swappable power supply slots. 1 minimum power supply required (order separately)
  • Two field-replaceable, hot-swappable fan trays (included)
  • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
  • Weight: 5.43 kg (11.97 lbs)
• Aruba 6300M 48-port 1GbE and 4-port SFP56 Power-to-Port 2 Fan Trays 1 PSU Bundle (JL762A)
  • 48x ports 10/100/1000BaseT ports
  • 4x 1/10/25/50G SFP ports
  • 2 field-replaceable, hot-swappable power supply slots and comes with 1 Power-to-Port power supply (JL760A) installed. Additional Power-to-Port power supply can be ordered separately. Supports JL760A power-supply only
  • Two field-replaceable, hot-swappable fan trays (included). Supports JL761A Pwr2Prt Fan Tray only
  • Dimensions: (H) 4.4 cm x (W) 44.2 cm x (D) 38.5 cm (1.73″ x 17.4″ x 15.2″)
  • Weight: 1 PSU 5.7 kg (12.5 lbs); 2 PSU 6.27 kg(13.8 lbs)
• Aruba 6300F 48-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL665A)
  • 48x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
  • 4x 1/10/25/50G SFP ports
  • Internal (fixed) power supply (900W), fixed fans
  • Up to 720W of PoE+
  • Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
  • Weight: 5.10 kg (11.24 lbs)
• Aruba 6300F 24-port 1GbE Class 4 PoE and 4-port SFP56 Switch (JL666A)
  • 24x ports 10/100/1000BaseT PoE+ ports supporting up to 30W per port
  • 4x 1/10/25/50G SFP ports
  • Internal (fixed) power supply (900W), fixed fans
  • Up to 370W of PoE+
  • Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
  • Weight: 4.95 kg (10.91 lbs)
• Aruba 6300F 48-port 1GbE and 4-port SFP56 Switch (JL667A)
  • 48x ports 10/100/1000BaseT ports
  • 4x 1/10/25/50G SFP ports
  • Internal (fixed) power supply (900W), fixed fans
  • Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
  • Weight: 4.46 kg (9.83 lbs)
• Aruba 6300F 24-port 1GbE and 4-port SFP56 Switch (JL668A)
  • 24x ports 10/100/1000BaseT ports
  • 4x 1/10/25/50G SFP ports
  • Internal (fixed) power supply (900W), fixed fans
  • Dimensions: (H) 4.39 cm x (W) 44.2 cm x (D) 32.7 cm (1.73″ x 17.4″ x 12.9″)
  • Weight: 4.36 kg (9.61 lbs)

MANAGEMENT PORTS

• 1x USB-C Console Port
• 1x OOBM port
• 1x USB Type A Host port
• 1x Bluetooth dongle for use with Aruba CX Mobile App

POE POWER

• Up to 2880W of Class 6: JL659A
• Up to 1440W of Class 6: JL660A
• Up to 1440W of Class 4: JL661A
• Up to 720W of Class 4: JL662A
• 720W of Class 4: JL665A
• 370W of Class 4: JL666A

MOUNTING

Mounts in an EIA standard 19 in. telco rack or equipment cabinet. Horizontal surface mounting only. 2-post rack kit included.

POWER SUPPLIES AND FAN TRAY

• Aruba X371 12VDC 250W 100-240VAC Power Supply (JL085A)
• Aruba X371 12VDC 250W 100-240VAC Power-to-Port Power Supply (JL760A)
• Aruba X372 54VDC 680W 100-240VAC Power Supply (JL086A)
• Aruba X372 54VDC 1050W 110-240VAC Power Supply (JL087A)
• Aruba X372 54VDC 1600W 110-240VAC Power Supply (JL670A)
• Aruba 6300M Fan Tray (JL669A)
• Aruba 6300M Power-to-Port Fan Tray (JL761A)

ENVIRONMENTAL

• Operating temperature: 32°F to 113°F (0°C to 45°C) up to 5,000 ft. Derate -1 degree C for every 1,000 ft from 5,000 ft to 10,000 ft
• Operating Relative Humidity: 15% to 95% @ 104°F (40°C) noncondensing
• Non-Operating: -40°F to 158°F (-40°C to 70°C) up to 15,000 ft
• Non-Operating Storage relative humidity: 15% to 90% @ 149°F (65°C) noncondensing
• Max. Operating Altitude: 10,000 feet (3.04 km)
• Max Non-operating Altitude: 15,000 feet (4.6 km)
• Acoustics:
  • Sound Power (LWAd) range: 4.6- 5.2 Bel
  • Sound Pressure (LpAm) (Bystander) range: 28.7-34.9 dB
• Primary airflow: Front and side to back. JL762A has Back to Front and Side.

ELECTRICAL CHARACTERISTICS

• Frequency range: 50-60 Hz
• AC Voltage: 100-240 volts
• Maximum current range: 12A – 1.2A

SAFETY

• 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013
• UL 60950-1 2^nd Ed.
• CAN/CSA 22.2 No 60950-1-07
• IEC 60950-1:2005 (w/all know national deviations)

EMISSIONS

• EN 55022:2010, Class A
• EN 55032:2012, Class A
• EN 55024:2010
• EN 61000-3-2:2014
• EN 61000-3-3:2013
• FCC part 15 Class A or FCC 47 CFR part 15B Class A
• ICES-003 Class A
• VCCI Class A
• CISPR 22 Class A
• CISPR 32 Class A or CISPR 32 Ed 2.0: 2015 +
• COR1:2016
• CISPR 24:2010 or CISPR 35:2016

IMMUNITY

• Generic: CISPR 24 / CISPR 35
• EN: EN 55024:2010 /EN 55035:2017
• ESD: IEC 61000-4-2
• Radiated: IEC 61000-4-3
• EFT/Burst: IEC 61000-4-4
• Surge IEC 61000-4-5
• Conducted: IEC 61000-4-6
• Power frequency magnetic field: IEC 61000-4-8
• Voltage dips and interruptions: IEC 61000-4-11
• Harmonics: IEC/EN 61000-3-2
• Flicker: IEC/EN 61000-3-3

ADDITIONAL SPECIFICATIONS

For complete specifications, please see the data sheet.
