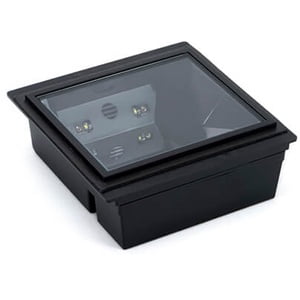

ATR210 – TripTick®
The state-of-the-art TripTick® reader series includes options for barcode reading, NFC/RFID and barcode reading, and contactless EMV payments, NFC/RFID and barcode reading.
The ATR210 is designed to read RFID/NFC tickets or tokens and 1D/2D barcodes from mobile phones, tablets, wearables, contactless cards and paper in any orientation. TripTick offers an especially intuitive and quick interface for data reading and writing. It works with all popular contactless cards – including Mifare® (Classic®, Ultralight®, DESfire®, Plus) and Calypso®.
✓ Worldwide express shipping
✓ Unmatched customer support
No-Nonsense Installation
TripTick offers operators the ultimate no-nonsense installation. Its small footprint, low profile, slot-in design enables easy integration into kiosks, ticket machines, turnstiles and access gates. Furthermore, its rugged water-resistant construction with no moving parts, enables it to withstand years of indoor and outdoor public access use.
An option for Power over Ethernet (PoE) allows installation without a dedicated power supply. The device is also capable of RS422 connection at up to 1500m.
Proven Heritage
TripTick retains the key aspects of the size and shape of our proven LSR116 and LSR118 products, however its design delivers a significantly increased active scan area to further improve its barcode reading performance.
TripTick’s optimised imaging ensures read reliability and high-speed performance; capturing and decoding all popular linear, PDF417 and 2D symbologies.
Applications
Self-service kiosks and ticket vending machines
Access control gates & turnstiles for stadia, building access & transportation
Retail voucher redemption and loyalty cards
Car park ticket machines and automatic barriers
Casino and TITO gaming machines
Device Features
Connection type
USB
Ethernet
RS232
RS485
Technology
NFC/RFID
Barcode
Features
Contactless Capability
Works with all popular contactless cards
Barcode Reading
Reads 2D, PDF417 and linear symbologies
IP67 Sealed
Front face sealed for integration into indoor or outdoor kiosks and gates
Reads Any Media
Optimised focal distance design improves read performance for all media
